Hospital switch Board Diagram:

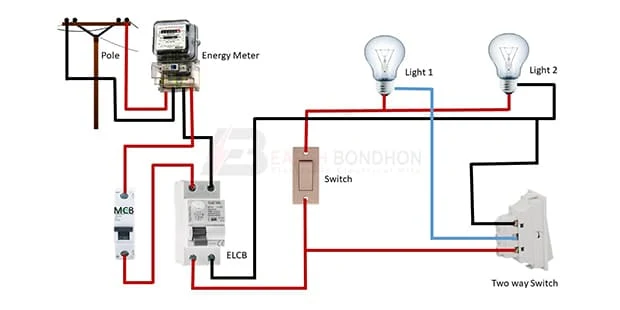

This diagram shows how to make The Hospital Cable Wiring. Hospital cable management. In this circuit, we use a single-phase energy meter, an SP MCB, an ELCB, a switch, two CFL lights, and a 2-way switch. This circuit diagram is very simple and very easy to connect. If you want to know more about this circuit please stay with our website and check our youtube video below the post.

Diagram of hospital switch board wiring:

Hospital switch Board Wiring
Fig 1: Hospital switch Board Wiring

Components Need for this Project:

You can get the components from any of the sites below:

  1. Energy Meter [See Buy Click Amazon]
  2. SP MCB [See Buy Click Amazon]
  3. ELCB [See Buy Click Amazon]
  4. Switch [See Buy Click Amazon]
  5. 2-way switch [See Buy Click Amazon]
  6. Light [See Buy Click Amazon]
*Please note: These are affiliate links. I may make a commission if you buy the components through these links. I would appreciate your support in this way!


Read Also:

Components used to make the switch board wiring:

01. Energy Meter

Energy Meter
Fig 2: Energy Meter

The measuring device with the help of which the electric power or energy of a circuit is measured is called Energy Meter (Energy Meter). Also called a watt-hour or kilowatt-hour meter. For home appliances, we used a single-phase energy meter. The single-phase energy meter is directly connected between the line and the load. Both coils produce their magnetic fields, when the meter is connected to the supply line, and the load. Energy meters are used in homes and in industrial applications where we want to found that how much energy is being consumed by home appliances and electrical equipment.

02. SP MCB

Fig 3: SP MCB

MCB SP means single pole it protects only one phase switching. MCB (Miniature Circuit Breaker) Curswitch is the most basic general-purpose switch that you use to control a light or another device from one location. These Switches Have Two Brass-Colored Screw Terminals Connected to the hot Power Source Wires. (MCB) For any Distribution Board, the Protection System Must be Used in The Incomer. Phase and Neutral Single Phase Supply to break. 120-volt circuits, 15-20 amp single pole breaker is typically used.

03. ELCB

Fig 4: ELCB

An earth-leakage circuit breaker (ELCB) is a safety device used in electrical installations with high Earth impedance to prevent shock.Generally, the current sensing devices termed Residual current Circuit Breaker (RCCB), and voltage detecting devices named Earth Leakage Circuit breaker Earth-Leakage Circuit Breaker (ELCB). For several years, both the voltage and current operated ELCBs were both referred to as ELCB (Earth-Leakage Circuit Breaker) due to their simple name to remember. But the applications of these 2 devices gave growth to the significant mix-up in the electrical industry.

04. Switch

Fig 5: Switch

A Single-Pole, Single-Throw (SPST) Switch. It's Got one Output and One Input. The Switch will Either be Closed or Completely Disconnected. SPSTs are Perfect for on-off Switching. They're also a Very Common Form of Momentary Switches. SPST Switches are Commonly Used in a Variety of Electrical Circuits and Applications, Such as Turning on And off Lights, Fans, and Other Appliances. They can Also be Used to Control the Flow of Electricity to Different Parts of a Circuit or to Switch Between Different Circuits Altogether.

05. 2-way switch

2-way switch
Fig 6: 2-way switch

The two-way switch is a type of multiway switch. Multiway switches have more points and can be controlled in multiple ways simultaneously. The middle connection normally goes to the load and the two side connections act as switches. Again, the opposite is also true if it is used in the lamp connection.It is a type of switch that has three wire connections. And it really has no off or on. Both sides can be turned on or off depending on how you connect one to the other. The two-way switch is a type of multiway switch. Multiway switches have more points and can be controlled in multiple ways simultaneously. Two Way Switch has three wire connection system.

06. Light

Fig 7: Light

CFLs work in a completely different way from ordinary lamps, they work by using a different process called fluorescence rather than generating light from heat. A typical light bulb wastes 90% of energy and converts only 10% of energy into light, this is where CFL has the biggest advantage. CFL- Curved or conical glass tube filled with argon and a small amount of mercury vapor. The inner wall of the glass is coated with fluorescent material. CFL- It is manufactured using the principle of creating fluorescent light. CFL- Originally white in color but now the construction and use of CFLs producing colored light has become popular.
