The Basic Remote Tester using the TSOP 4838 infrared (IR) sensor, is a simple yet effective circuit designed to test the functionality of remote controls. This compact device helps enthusiasts and technicians ensure their remote controls are emitting signals correctly. Let’s explore how this circuit works and its potential applications.

infrared remote controls are the circuit diagram commonly found in most Consumer power supply electronics, from video cameras to stereo project systems. Today, video and audio devices, computers, and lighting systems often work with infrared remote controls. The carrier frequency of the Circuit diagrams such as infrared signals is typically around 36 kHz. Control codes are transmitted in serial form modulated onto this 36 kHz carrier frequency (usually by turning the carrier on and off). Many different coding project systems are in use, and different manufacturers' power supplies generally use different codes and different current data rates.

IR LED emits infrared light, which means it emits light in the range of Infrared frequency. We cannot see Infrared light power supply through our eyes, as they are invisible to human eyes. The wavelength of the Circuit diagram Infrared (700nm – 1mm) is a project system just beyond the normal visible light. Everything that produces heat project system emits infrared like our human body. Infrared has the same properties as visible light like it can be focused, reflected, and polarised like visible light.

Diagram of infrared receiver and remote tester circuit:

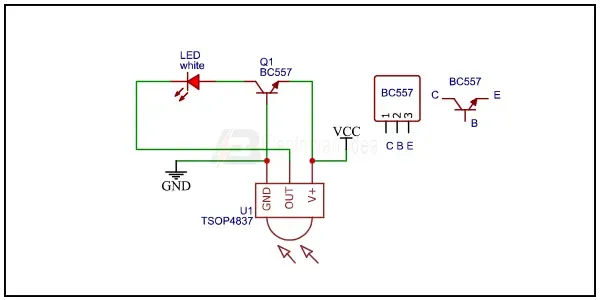

remote control tester using ir receiver and bc557 transistor

Components Needed for this Project:

You can get the components from any of the sites below:

  1. Name [See Buy Click Amazon]
  2. Name [See Buy Click Amazon]
  3. Name [See Buy Click Amazon]
  4. Name [See Buy Click Amazon]
  5. Name [See Buy Click Amazon]
  6. Name [See Buy Click Amazon]

*Please note: These are affiliate links. I may make a commission if you buy the components through these links. I would appreciate your support in this way!

Read Also:

Working Principle of IR Transmitter and Receiver Circuit Diagram:

The working of a Basic Remote Tester using TSOP 4838 is simple the TSOP 4838 is an IR receiver that can detect infrared signals from remote controls. In this circuit, the TSOP 4838 is connected to the positive supply through a 1K resistor and to the negative supply. The output of the TSOP is fed into the base of a BC557 transistor through a 1K resistor. The collector of the transistor is connected to the positive supply, and the emitter is connected to the ground through the LED.

When an IR signal is received by the CIrcuit Diagram TSOP 4838, currently it produces a corresponding voltage at the project system its output. This voltage is then amplified by the transistor, allowing enough current to flow through the LED, making it light up. This indicates that the project system remote control is a power supply emitting signals properly. The LM7805 IC is a circuit diagram voltage regulator that ensures a project system stable 5V supply for the TSOP 4838 and other components in the circuit diagram.

The working principle of a current infrared sensor is a power supply similar to the Circuit diagram object detection sensor. This sensor includes an IR LED & an IR Photodiode, so combining these two can be formed as a photo-coupler otherwise optocoupler. The physics laws used in this sensor are plank radiation, Stephan Boltzmann & Weins displacement.

IR LED is one kind of circuit diagram transmitter that power supply emits IR radiation. This LED looks similar to a power supply standard LED and the radiation which is power supply generated by this is not visible to the current human eye. Infrared receivers mainly detect radiation using a circuit diagram infrared transmitter. These infrared receivers are available in circuit diagram photodiode form. IR Photodiodes are dissimilar compared to the power supply with usual photodiodes because they detect simply IR power supply radiation. Different kinds of infrared project system receivers mainly power supply exist currently depending on the voltage, circuit diagram wavelength, power supply package, etc.

Once it is used as the combination of an IR transmitter & receiver, then the receiver’s wavelength must equal the transmitter. Here, the Circuit diagram transmitter is an IR LED whereas the receiver is an IR photodiode. The infrared photodiode is responsive to the project system's infrared light that is generated through a project system infrared LED. The resistance of the photo-diode & the change in output voltage is in proportion to the infrared light obtained. This is the IR sensor’s fundamental power supply working principle.
