Simple House Wiring Diagram:

This diagram shows how to connect the Simple House Wiring Diagram. In this circuit diagram, we just try to describe simply how to connect a Simple House Wiring Diagram to house loads like (light, fan), etc. This diagram is for the Simple House Wiring Diagram. So you can wire your house or office like this diagram very easily. If you want to learn how to connect this circuit clearly you can follow our youtube video link in below.

Diagram of Simple House Wiring Diagram:

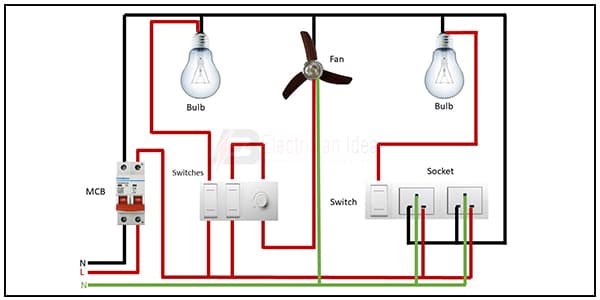

Simple house wiring Diagram
Fig 1: Simple house wiring Diagram

Components Need for this Project:

You can get the components from any of the sites below:

  1. DP MCB [See Buy Click Amazon]
  2. Switch [See Buy Click Amazon]
  3. Socket [See Buy Click Amazon]
  4. Ceiling Fan [See Buy Click Amazon]
  5. Bulb [See Buy Click Amazon]
*Please note: These are affiliate links. I may make a commission if you buy the components through these links. I would appreciate your support in this way!


Read Also:

Components used to make the Simple house wiring Diagram:

01. DP MCB

Fig 2: DP MCB
Double pole MCB can control two wires. This circuit breaker is generally used in single-phase electric lines. Double pole MCB circuit breaker input has two wires supply two wires and an output. In a single-phase line, A double-pole MCB circuit breaker is used to give good production. This circuit breaker is provided through phase and neutral circuit breaker, it is very safe. This circuit breaker is preferred for home appliances. A DP MCB usually trips for 2 reasons 1. Overload 2. Short circuit.

02. Switch

Fig 3: Switch
A Single-Pole, Single-Throw (SPST) Switch. It's Got one Output and One Input. The Switch will Either be Closed or Completely Disconnected. SPSTs are Perfect for on-off Switching. They're also a Very Common Form of Momentary Switches. SPST Switches are Commonly Used in a Variety of Electrical Circuits and Applications, Such as Turning on And off Lights, Fans, and Other Appliances. They can Also be Used to Control the Flow of Electricity to Different Parts of a Circuit or to Switch Between Different Circuits Altogether.

03. Socket

Fig 4: Socket
A socket is a type of equipment used in electrical wiring lines that always has an electrical connection. According to the need, it can be supplied to the electrical equipment. In case of electric iron, electric hand drill machine and electric hand grinder etc. two-pin socket with earth terminal is used. Also, three-pin sockets are used for electrical appliances that have a metal body and are likely to be electrified. Eg – Refrigerator, room heater, table heater, hot-plate, electric oven etc.

04. Ceiling Fan

Ceiling Fan
Fig 5: Ceiling Fan
The main driving force behind all ceiling fan systems is the motor used inside the fan. We can also compare it with the soul of a fan. This motor converts the supplied electrical energy into mechanical energy which turns the ceiling fan and gives us air. When current is supplied, the magnetic field formed on the positive half-cycle becomes the reverse magnetic field on the next negative half-cycle. The magnitude part does not rotate and the capacitor is converted to a phase when it is connected to a phase motor or ceiling fan with a helical coil or stationing coil. When power is supplied there is a magnetic difference between the phase currents and the coils (acting as two phases) so that the motor or fan rotates.

05. Bulb

Fig 6: Bulb
CFLs work in a completely different way from ordinary lamps, they work by using a different process called fluorescence rather than generating light from heat. A typical light bulb wastes 90% of energy and converts only 10% of energy into light, this is where CFL has the biggest advantage. CFL- Curved or conical glass tube filled with argon and a small amount of mercury vapor. The inner wall of the glass is coated with fluorescent material. CFL- It is manufactured using the principle of creating fluorescent light. CFL- Originally white in color but now the construction and use of CFLs producing colored light has become popular.

Thank You for visiting the website. Keep visiting for more Updates


Frequently Asked Questions

What is the simplest of all wiring diagrams?

1), as often called a ladder Circuit diagram, is intended to be the simplest form of an electrical circuit diagram. This diagram shows the circuit diagram components on horizontal lines without regard to their physical location. It is used for troubleshooting power supply because it is easy to understand the operation of the circuit diagram.

How do you start a wiring diagram?

To make an electric wiring diagram, you simply draw all the symbols of the components that you want to use in your circuit… Then once the components are drawn you will need to connect each of those electrical components, the way you envisioned and designed how the circuit will work using those components.

What is an electrical layout diagram?

lt shows how the electrical wires are interconnected and can also show where fixtures and components may be connected to the system.

What is a one-wire diagram?

A single-line Circuit diagram (also known as an SLD or one-line diagram) is a simplified representation of an electrical Project system. Symbols and lines are used to represent the nodes and connections in the system and electrical characteristics may be included as well.

How do you read a basic wiring diagram?

The electrical and schematics are read from left to Currenttlou right or from top to bottom. This is important to get right, as the signal direction Power supply indicates the flow of current in the circuit diagram. It is then easy for a user to understand when there is a change in the course of the circuit diagram.
